Tuesday, March 16, 2021

Silver Mesa DWA emblem for Claire microphone

I've been a bit neglecting of this blog in the past year, but I had to post this brief improvement, since it took a while to solve.  You would be surprised how tricky a badge might be if you've never done one or thought about one.

My "251" main vocal mic Claire got a sterling silver badge from Silver Mesa Studios, look them up on Instagram if you're after some fine jewelry or things like that.  Or just to admire some workmanship.

I used a couple of nickel brass pins to fix the badge in place, the whole thing is secured with epoxy.  Before this it was just floating with some two sided tape.  This is a more permanent solution.

Other "final tweaks" to this well proven mic build are putting the GE JAN tube back in, an old one, and very soon I'll make a custom Gotham cable, which should be the final small tweak to this design other than upkeep.

I tested an SE Reflexion Filter Pro behind this mic, and I hated what it did.  Made the vocal really dead and added huge resonant spikes at 400 Hz and 9,000 Hz.  Was a nightmare to try to mix that.  The Sound On Sound study of these filters will show you a graph of the coloration that they add to a signal, none of them are transparent, not a single one.  Unless you have blind faith in the marketing and don't use your ears.

So now I've added a blanket to the back wall and will soon construct some more bass traps for that side of the room, to control the low end a bit more, I hope.

Here's the microphone:




Tuesday, July 21, 2020

Texas Instruments TI-83 Plus Ribbon Connector Repair 'garbled screen characters fix'

Using some internet tips I was able to complete this repair successfully, I'll summarize here.

When you turn on the calculator the screen has garbled gibberish on it, this is the fix to get it back to proper operation.  You need to replace the ribbon connector with your own soldered wires.

First of all, the only picture I got, the work in progress:  (you can see my helping hand clip poking into the frame)



You'll need a few supplies on hand before you attempt the repair:

Torx T6 screwdriver
30 Ga. wire
a "third hand" device helps a lot

Remove the batteries, remove the screw for the small "watch battery."

Use the T6 driver to get the remaining screws out.

The case won't pull apart, there are two clips on the bottom sides, and one on the top edge, inside the case, that you need to press in with a small object to release the two sides of the case.

Once you've got it apart, remove the two screws holding the ground plane plastic shield thing in place, then unstick the sticky part of it and remove the whole thing.

Now you need to remove the ribbon connector.  I used small needle nose tweezers to get it loose of the main PCB, and the screen PCB.

Then I applied some 99.9% isopropyl alcohol and scraped off the sticky residue with the small tweezers.  I cleaned the are with more alcohol.  The PCB copper pads should look shiny now.

I also cut away the bottom part of the ribbon, a black sticker, with nippers and a razor knife.

You need to cut and strip 15 small 30 ga. wires and tin both sides of them.  You need to tin all of the copper pads with solder also.  You need two pieces of 24 Ga. wire for the power pins, the bigger pads.  you might get away with the 30 Ga. here but I used 24 wire.

Now, using your "helping hand" tool, carefully solder all of the wires to the main PCB.  See my photo for the orientation of the wires.  It should only take a little heat to get them connected since everything has been pre-tinned.

Once you've got all your wires connected, making sure you didn't make contact with any of the components or bare pads near the ribbon connector pads you soldered, you can replace the screen assembly, and one by one, bend over each wire and solder them in place to the screen.  This is the "fun" part.

Inspect your work closely, being mindful of cold looking solder joints, or solder bridges, or unintentional shorts.

Now you can put it back together, and if you're tenacious and lucky, it should work.  I think it took me about an hour or so from start to finish.  One less thing going in the landfill today.

Friday, November 8, 2019

Boss Katana 50 MK II Speaker Out Mod

I love the BOSS Katana amps.  I started with a MK I 100 Watt head.  Recorded an album track with it direct into one of my Wolfboxes (which I have not blogged about apparently).  Jammed and rehearsed with it a lot.  MK II is vastly superior to MK I mainly due to the INDIVIDUAL KNOBS for each effect.  Those half and half knobs were a nightmare.  Extra amp modes are also welcome.  The "variations" are all just a little brighter sounding than the MK I amps.  Useful.

The Katana 100 needs a global -2 or -3 dB EQ at about 4 kHz.  It's really sharp sounding stock.  This is an easy tweak with the Boss Tone Studio software.

The Katana 50 combo needs this on the clean amps mainly, dirty sounds are fine "stock."

Katana 100 feels a little more powerful in the hands, likely due to the beefier power section.  Katana 50 feels a little more midrangey and softer in some ways, which you could expect from a less powerful amp.  A little less bass authority, a little less top end push.

I wanted a speaker out on my Katana 50 so it can be my ultimate "any scenario" swiss army amp.  Combo it up, direct out, or launch it to Pluto with a bigger speaker cabinet.

The 100 Watt amps are just simply too loud.  People were constantly complaining at me to turn down, no matter where I took it.  I am talking about some loud cats too.  Katana 50 is more reasonable, and has the benefit of lower price, as well as a 25 watt mode for medium temperature porridge.  It feels a lot finer in terms of small volume control changes.  I never was able to use the 100W mode on the Katana head.  The 50 is also painfully loud through a 2x12 in 50 W mode.  Which brings me to my speaker out mod!

Got some hardware from Lowes.  A junction box, some M4 bolts and nuts and washers.  Drilled some holes.  Mounted the box to the cabinet.  Punched out the top hole in the junction box, fed wires through.  Clipped off the spade connectors.  Soldered a plastic 1/4" jack from Mouser for isolation (might not be needed).  Made a new short speaker cable to connect to the combo speaker.

FOR CLARITY: Red wire goes to tip of jack, black wire to sleeve.  Use heavy gauge wire for your short speaker cable.  Probably 18 gauge would be enough for this six inch run.

There is no room inside the chassis for a speaker jack, I checked.  PCBs are in the way.  I would have done it that way if it were possible.

Took a little longer than I expected for some reason.  The mod ended up working solidly.  Now I can use any speaker I want.  Here's the pictures to prove it.

These amps are fantastic once you get your sounds dialed in.  The FX are noteworthy also.  No brainers for $200-300.
























Monday, March 25, 2019

Emerson Em Drive - DIY build - Old Turkey Head - Layout and Schematic

I started with IvIark's layout, it "worked"

The problem is crackly decay on the distortion, and too much distortion.

I have seen at least 3 different value resistors for the collector resistor in various internal pictures of original Emerson pedals posted around the web.  The 2Megaohm resistor seems to be constant.

The obvious answer and solution is that they are selecting resistors for each transistor that they test.

The easiest way to do this in a DIY build like this one is to simply remove the bias resistor and replace it with a 10K trim pot.

When I biased my 2N5088 to approximately 4.6 VDC on the collector, I was given a smooth, pretty gain sound with a gradual transition to heavy clipping with the Pico pot on full rotation.

This is a wonderful sounding pedal, and I recommend it.  I've had the privilege to play a "real" one and the DIY version is every bit as satisfying.  I'm currently using it in front of a Vox AC30HW but I'm sure it would work with almost any amp.

This is a very easy build.  There is some mojo in the caps, in my opinion.  I really like the way Paper in Oil caps sound and I use them at almost any chance that I get.  Just really smooth and clean with the tiniest hint of warmth.  I'm sure some nice film caps would do well too.

You can play around with transistor selection, and bias voltages, if you want to get tweaky with it or explore the range of this circuit.  I just quickly arrived at a working version and left it there.

I did a version with a 220 uF filter capacitor too, because I hate noise and hiss and hum.  My pedal build with the big cap is very quiet even at very high gains, just a small bit of hiss is left.  The stock version from Emerson does not use this cap.  I will include both layouts below.


Sunday, December 16, 2018

Interfax Harmonic Percolator working circuit DANTONE Pastry Chef

There's a lot of "information" out there about the Harmonic Percolator.

Here is one I spent a few days on working out the kinks that works as it should.

I started out with Iviark's nice small layout (posted below) but I found some problems.

The two blue additions to the schematic drawn below are my fixes, and had to be manually added to the existing layout.  I haven't had time to draw a new layout yet.

The diode lift switch works fine, and is a recommended mod.

The first problem was a fizzy/crackly/velcro kind of decay on the fuzz mode.  Adding the 1 nF capacitor parallel to the clipping diodes near the output solved this problem.  You could experiment with other values maybe in the pF range.  This cap shows up on some of the traced schematics out there.  In my case, it was needed.

I also added a 1 nF cap from the collector of Q1 to ground.  Parallel to the 20K resistor.  This cap is present in the MadBean schematic, as well as a few others.  It increased the transistor fuzz/gain of the circuit and generally made the fuzz sound better.  Without it, the fuzz setting was sort of "insane, bogus" and "fucked up" sounding.  I wasn't too thrilled about it.  With the cap in place, it's a huge, usable fuzz tone.  "Why doesn't my pedal sound like the videos."  In my case, this cap was the answer.

I also experimented with adding 220 uF filter capacitor to the 9V rail, then I tried 47 uF with 100 nF in parallel.  BOTH OF THESE ADDED EXTRA NOISE.  Not what I'd expect, but the filtering actually made the pedal noisier!  I could swear it sounded a little worse that way too.  Not recommended.  I would recommend building with shielded I/O cable from the jacks and circuit board if you have the time and patience.  That might help the hiss a little bit.  You could almost think of it as a pleasant hiss but if I'm being perfectionist I'd rather it not be there.

I used 1N695 diodes with a forward voltage of about 290-350 mV.

You could use 1N4148 if you want the fuzz to be louder.

My Q1 was a 2N404A of 186 hFE.  Q2 was a silicon 2N222 of about 150-180 hFE.  I could have gotten away with a little less gain I guess but these values work fine, they just are a little fuzzier at lower settings on the Harmonics knob.  Doesn't quite work as a "clean boost" it's more of a "dirty boost" with the diode switch lifted.

This pedal does clean up exceptionally well with the guitar's volume knob, like a Fuzz Face.

Diode lift sounds great on this pedal, giving a warm fuzz/boost/overdrive.  Be careful though because it can get dangerously loud.  Watch those cilia.

This is the "stock" or "collective" version.

If you want to build the "Albini" version, check out the MadBean pedals PepperSpray2018 PDF file for the correct values.  I think the "Albini" version is a little lower gain and a little less wild and crazy.  I'd like to build that one too just to see.




Friday, August 24, 2018

Behringer MDX-1200 Autocom Mods (OH Boy...)

I'm not sure where to start this one so this is the GroupDIY post that started it: (those guys are trouble, I tell you.)  One thing to note is the schematic is apparently nowhere to be found in 2018, so this whole thing is based on text advice.

https://groupdiy.com/index.php?topic=39556.0

I got an MDX-1200 on ebay for pennies, and it came to me in apparently NOS condition.   Including original packaging.  However I later discovered that the bypass switches are both intermittent.  Exactly 1 year later I decided to do the work.  On a slow day that needed some activity.

The achilles heel of these cheap compressors (behringer, Alesis) if you go back through my posts is always the cheap switches.  They just don't last.  I've bought and sold a few of these kinds of boxes with the same problems.  You simply can't rely on them.  I may have to even eventually "Mod" this compressor with some regular toggle switches.  For now I just don't touch them.  (If you jam them enough times they work.)  I could also recommend to not buy these.  If you are in a busy studio.

Basically the plan, as usual, is to upgrade the op amps and some of the capacitors.  I made an image list that I will post here:



All the stuff I got from Mouser.  Here are the parts I ordered (I did also order some spare capacitors, so there's extra on this list than what was used.)

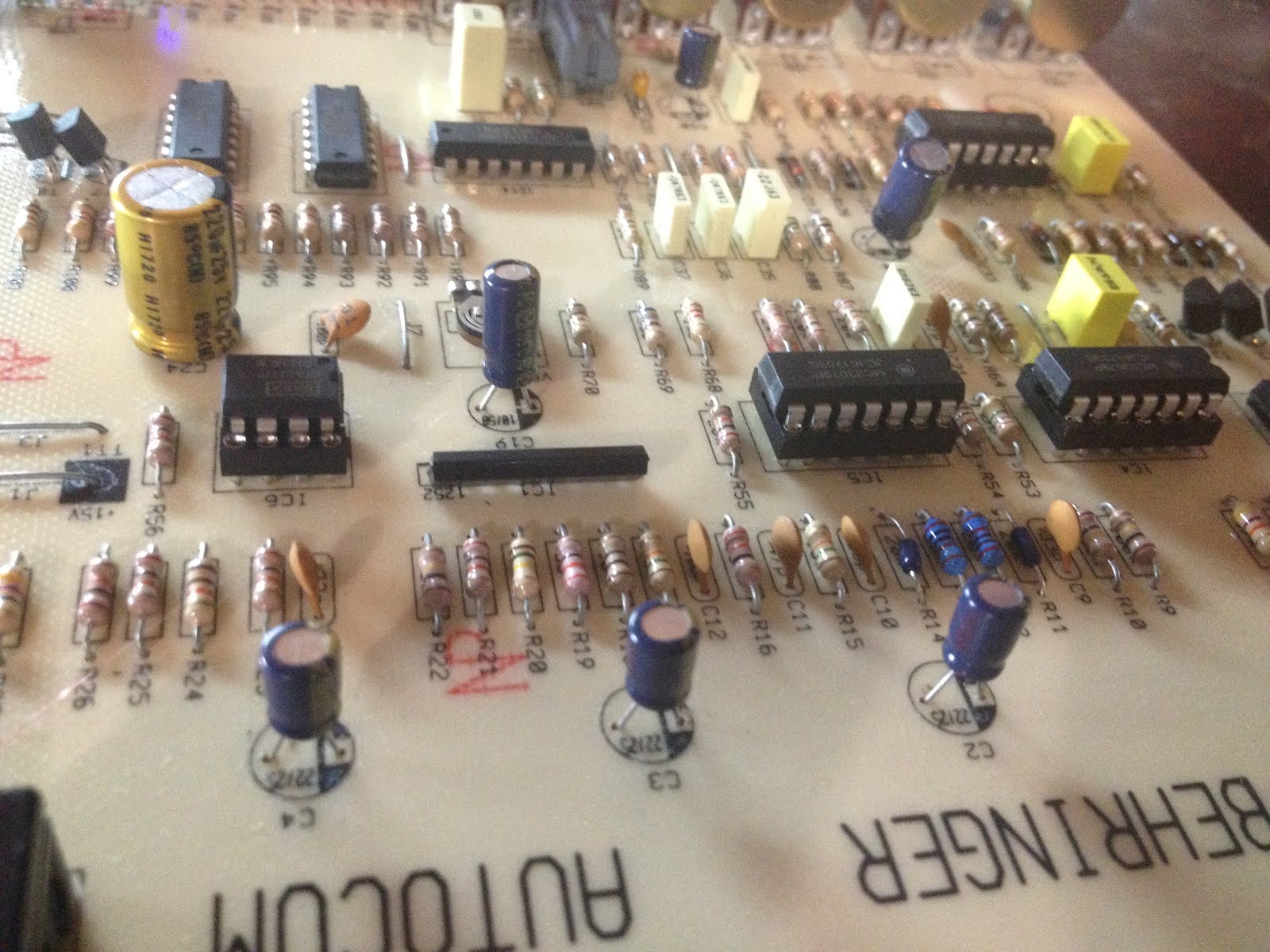

The job took about 4 hours with several breaks.  That's FOUR HOURS I could have spent building my Serpent SB4000 Kit!!!  Let's call it practice, I guess.  The main thing is that I got it done and it worked on the first plug-in.  Just testing my skills.  I was careful not to destroy the pots when pulling off the knobs.  Something that went wrong with my Composer and Alesis mods.  I decided to de-solder the red and black wires to the front panel LED's so I could remove the front panel and freely work on the PCB.  I had to re-solder them at the end of the work.  (Pictured, sort of.)

I also learned a new technique of using desoldering braid.  I place it across the 7 holes of the big op amps which are removed already, and gently roll the iron across the braid for about 30 seconds.  You lift up the braid and most of the solder has been removed.  Pretty cool.  My new Hakko tweezers also really came in handy for desoldering the op amp legs after I cut off the op amps.  Stick the iron on there, pull the leg part out with the tweezers.  Then use the desoldering braid.  Then put in your gold pin sockets, and finally your new op amps (after you have done your PSU bypassing with .100uF caps.)

This was also my first time of bypassing the op amps.  You can see that I soldered some small ceramic capacitors to the bottom of the PCB.  What you do is find the + and - voltage pins on each op amp IC, mark them with a black dot (marker), find the nearest ground solder pad with a multimeter (in continuity beep mode) circle that.  Then put 2 caps from + and - to ground.  Apparently this is an oversight in shitty designs like these that should have been there if it were a good design in the first place.  My caps were small enough (MLCC) to fit under the board.  It was kind of fun and I'm glad I learned a new technique.  If you try to use certain high slew rate op amps in an un-bypassed circuit sometimes they will oscillate and possibly even destroy themselves.  This happened to me with one of my Symetrix 501 mods from years ago.  That poor bastard finally got sold on Reverb.com to someone with a better heart than me.

Sound is very high-mid forward and tight, with good bass extension.  It's a pretty aggressive punchy sounding compressor.  There is some distortion or clicking noises on the attack of bass notes.  Knob positions don't seem to help that much.  On bass synth anything below 10ms on the attack knob results in ugly distortion.  I wonder if I need to disable the gates or "enhancer" somehow.  This is making the compressor questionable for studio use.  HOWEVER it sounds pretty killer on snare drum.  Beats my plugin chain.  I think a tiny bit of crunch would just blend in with the snare wires, I'm not sure I can even hear it.  The Midas 512 is also working great on snare drum EQ.  So this goes next to my Composer mod as another "dirty compressor" which is once in a while useful.  I used it on a dirty synth line also and it made it stand out in the mix.

I can't recommend this project based on time spent and shoddy switches.  But if you are the tinkering and learning type it could be worth doing, if you already seem to have and MDX-1200 on hand.  Total project cost including the compressor was about $75 so yeah this is pretty dirt cheap, even after the mods.  Comparing value, a DBX 560A for under $150 or so would be a much smarter investment.  That's a tool that's going to be a lot more useful in any given session, and probably built a lot better as well.  The bottom line is these Behringer compressors are sort of a novelty.  People just mod them because they are so cheap, and the circuit board is easy to work on, once you get it out of the case.  These kinds of basic mods don't really turn them into "pro gear" it's a bit of putting a Hemi into a Pinto kind of result.  If I had to pick one, I'd say the MDX2100 Composer is probably going to be your better bet than this one.  The Composer just turned out better, and I think the earlier generations of these boxes had slightly better switches.

I am even told that the VCA in these are very similar to the ones in SSL compressors, if not even slightly better than the SSL VCA.  Not that they are going to sound the same because of that, but that this compressor might be actually useful to me now.  It's sitting in a sad and happy place in my rack with my Alesis 3630 and Behringer Composer from previous attempts.  Sort of like how Sylvia Massey has her broken Army Man Compressor.  It's 3 rack spaces of semi-working upgraded stuff that does sound pretty cool, but that could never really be sold or recreated.  It's all in good fun, and a good deed never goes unpunished.





Tuesday, June 19, 2018

Boss GE-7 Noise Reduction Mod and Review

Noise Reduction Modification

The main "problem" with the stock GE-7 is a little bit of hiss.  If you turn the 100 and 200 Hertz sliders all the way down you can hear it.  If you start boosting mids, treble, and level, you can hear it even more.

There are popular "mod kits" out there that involve a bunch of capacitors, but I decided to take a different approach to my mod.

I only want to change the 3 Dip-8 op amps.  Simply clip the left or right 4 legs of the op amps with small dykes, then bend and break the other half.  Remove the remnants of the legs with tweezers and a hot soldering iron.  Clear the holes the best you can with desoldering braid or a better tool if you have one.  Solder in some gold-pin sockets for best results (cheaper sockets are less reliable over time.)  Then insert three NE5532 op amps into the sockets and put the pedal back together.  Make sure they're oriented in the correct direction.  (There's a helpful graphic on the PCB.)  The job took me less than half an hour.

Now when you plug it back in, if it works, the noise should be very low, much quieter than most guitar pickups, or other gain pedals.

The reason I wanted to leave the tantalum capacitors in place is I like the way they sound.  To me this is a "tone" pedal not just a simple equalizer.  I have a cheap Donner EQ from Amazon that doesn't have the character of the GE-7.  It's clean and clear, yeah, but I think the GE-7 has a character that I really like.  It's "warm" to use a wide-ranging cliche.  Vintagey but clean enough.  Hurts my brain a little bit to type that out.

Some famous examples of gear using tantalum capacitors include the Neve 1073 channel strip, the Red Llama and MXR Distortion+ pedals, and the Telefunken ELAM 251 microphone.  If those circuits need to sound cleaner I'll tell you you're crazy.  There is a subtle character related to the caps.  Audio, and especially guitar, is not always about test measurements, but "Tone, mannn."  If the sound is happening then why have a temper tantalum?

It's also not a great idea to swap the caps because any deviation in capacitance value will change the operating frequency of the band it's related to.  If you do change caps, make sure to use exact values.  I just don't see any reason that electrolytic or ceramic caps would be desirable, unless you just don't like the way the GE-7 sounds.  They won't help the noise floor any.  The noise reduction comes from the NE5532 op amps which have a much lower self-noise than the stock JRC '22' op amps from Boss.  NE5532 cost about 35 cents apiece.  They do draw marginally more current than the stock op amps but I don't think it's something to worry about unless you're a battery dude.  I hate batteries.

So the whole GE-7 mod suite, Dantone version, costs about $2.50 and half an hour of labor.  I do hate noise, and tend to "kill it with fire."

REVIEW

My initial reaction to the GE-7 is "Why did it take so long for me to have this."  My 19-year-old guitar brain thought it was some sort of boring "utility" effect but in practice it's so much more.

I've been reading a lot about how Queens of the Stone Age, and Converge, get their "secret sounds."  A big part of both of their approaches is massive mid boosts into cranked up amps.  Kurt Ballou, in particular, is known for using the GE-7, and the EMG 85 bridge pickup, for most of the classic Converge sounds.

It gives a totally different sound than an overdrive, treble boost, clean boost, etc.  It's something you need to hear for yourself to believe.  The resulting tone is fat and crusty, like the amp is about to explode or catch on fire.  You can tailor the brightness, or bassiness to taste as well.  It's nasty.

The cool part is the amp is where the crunch is coming from, not some diode circuit or whatever.  Pushin' doze' toobs makes me evil smile and inspires the playing.  My Marshalls love this effect.  Blues licks sound extra bluesy.  Putting a fuzz in front of the GE-7 is also pretty stoneriffic.

The last picture below shows a typical setting of mine.  Boosted mids with the level all the way up.

Monday, February 26, 2018

Cornish SS-2 and G-2 DIY Pedal Builds and Circuit Notes

Cornish SS-2

First one I built to completion was the SS-2 from the Guitar PCB Super Sonic SS-02 PCB and build guide.
They randomly changed the output pot from 10K to 100K without telling you.  "No no no."  So I went ahead and subbed in a 10KB pot.  (Not a 10KA, I guess I like the B taper better in this circuit.)  One of Cornish's ad slogans is "Low output impedance, capable of driving long cables," etc.  So I decided to stick with the Cornish program.

Diodes are a little "tricky."  I just went quickly with the recommended 1N60P diodes recommended by GuitarPCB and they sound fine.  Wasn't really in the mood for an extended shootout.

1N60P is NOT a Germanium diode.  (Despite what some Chinese eBay sellers will tell you!)  It is a Schottky silicon diode with a similar forward voltage to a lot of the germanium parts, so it is used by a lot of modern pedal makers as a substitution (MXR Distortion+ for example) that meets ROHS requirements.  Whereas the germanium parts would not meet ROHS laws and therefore would not be legally allowed to sell in some markets today.  (Yikes!!)  Maybe that's some of the complaint about the modern MXR yellow pedal.  EDIT: there may have been an older diode with the 1N60P name that would have been germanium, just to add to the confusion.

In my Distortion+ build I find the 1N60P to be a bit brighter sounding than some generic NOS 1N34A in the same spot.  Same in this pedal--it's a little bright, but I like it.  I just have to run the tone control a little bit lower than noon at highly boosted settings.  This is a fun diode trick in the Dist+ and the SS-2.  It would be great to have them on a toggle switch.

If I had thought about it I might have stuck some old germanium diodes in there but I'm leaving it for now.  This was a fairly straightforward build.

Stick with the LM741 op amps it's part of the sound.  They are slow, dirty op amps and that's part of pedals like this one.  They contribute some clipping and sonic degredation that is part of the recipe.

It's capable of massive gain and output volume which can get a bit hissy at certain settings so I added extra filtering on the 9V supply (total of 330 uF.)  Another thing GuitarPCB randomly changed for no reason.  I also shielded some of the I/O wires to help again with noise.

If you crank up your Marshall or other Doomy amp and boost the SS-2, you will get wall-shaking bass out of this circuit...pretty cool.  Once again Pete Cornish is telling it on the tin, "Better low end retention than any other pedal circuit."  -O_o-

I didn't mess with the buffer on this one because buffers are a pain in the ass.

Cornish G-2


This one came second, and I'm glad because it was hard.  And there are a lot of common problems and misconceptions about this circuit.

I believe what a lot of people have come to agree that the original Dirk H. trace was wrong.

When you build this circuit to those schematics it's a muddy, flabby mess of a sound.  Just terrible sounding.  Any quick listen to a decent G-2 demo of a Cornish pedal on YouTube will show you how far off it is.  The video where Shnobel compares it to the Vick Audio pedal (probably built to this wrong schematic) is a good real world demonstration of how far off these builds can be.

Chasing the diode fairy is not the right way to "fix" this pedal.  It's just salt on a burnt duck.  And a significant waste of time.

However I did go with NOS germaniums this time after some swapping, the 1N695 are good sounding and in the general correct range.  You want somewhere between .20 and .30 V on the diode tester on your multimeter for forward voltage.  Mine are on the higher side of that range.

WHAT'S WRONG

I decided to go for the simplest solutions first.  There's a giant filter cap across the transistor on the gain stage right before the sustain pot.  It's a 1 nF cap in a lot of these circuit traces including the GuitarPCB PCB I am building on.  You need to change that to a 100 pF!!!!!!  Picked this tip up deep in the comments on Iviark's blogspot.

Suddenly, a LOT of your highs came back and the tone control is now useful.

The second cap to change is another 1 nF.  On the first clipping stage, change this to 560 pF.  Got this tip from GuitarPCB themselves in their most recent revision, so props to them for that.

Now you have that glassy chime that this circuit is supposed to have, as well as a truly useful range on the tone control.

Two simple cap swaps to go from mud to sweet chimey sustain.

EDIT 4-6-2018.  You're going to want to change that last 1nF cap on the second clipping stage as well.  I just threw a 500 pF on there.  Basically you want it to be much more similar to a standard Big Muff value across the board.  Any number of these 1nF caps will give you a huge muddy sound that somehow is painful to the ears..

After changing all three of the 1nF filtering caps to much smaller values, the whole pedal sounds much more even and is usable at any setting.  The wall of mud things seems to go away with these cap swaps.

God knows how close this is to an original in a side-by-side shootout... but it sounds damn good.  Sort of a sweeter/more overdrive-y muff type of sound.

Guitar PCB told me to change the transistors.  Once again, "No."  This probably doesn't make a huge difference.  I went with the intended BC549.  They also want you to change the tone pot to 100K on the newest board but I'm sticking with the stock 25K tone pot and 10n cap.

I did a buffered bypass and some shielded wiring and it took me a few extra hours to get this wired up in the box.

In review, play with the 3 1nF cap values (100 pF, 500pf/500pF +/- is good here), and you can play with different germanium diodes to get where you like.

It was worth the trouble though, these are some fun pedals.  They are not particularly "amp like" or "organic" or anything of that nature but they sound "Cool and good," as Billy Cardigan might say.  The thing that's notable is that they are indeed pretty far away from your typical dirt boxes.  Cornish has his own thing going on and I like that.

They both seem to have usefulness but the SS-2 seems "special" to me after playing them for a few weeks.

PICS


Friday, May 12, 2017

500 Series EQ DIY - Calrec PQ1549, kit named CEQ from DBDawg

A few years ago, I saw this kit for sale, and eventually bought a couple on sale.  They are no longer made, and the seller seems to be making motorcycle parts.  If you are on the market for something like a Calrec EQ, there is the RTZ Audio PEQ-1549 which comes highly recommended, and the Gyraf Audio DIY project is still out there, which is probably what this DBD kit is based on.

Flash forward to May, 2017 and I have finally made the Mouser order, and put them together.

I started my hardware EQ journey with a pair of Lindell PEX-500 Pultec-style EQ which are pictured at the bottom of this post, and that got me hungry to get as many channels built as possible, so I finished the DBD kits.  Really, for me, hardware EQ is the way to go, being much preferable to software equalizers.  The same is true for compression, and next month I hope to start some Hairball 1176 for my mixing racks.

For a long time, I thought that rack gear was unneccessary for great audio.  These days, EQ and compression, as well as things like spring reverbs and filters, seem just as important for my aesthetic as a good mic preamp or microphone.  When you insert a high quality hardware tool onto a track, there's this effect of jumping out of the speakers, that I don't get from most software.  Some things do come close, like the UAD SSL channel, etc.  Those are the plugins to keep on the ready.

If there's an adequate patchbay setup, along with a lot of ADC/DAC I/O for external inserts, it's relatively painless to use hardware during a mixdown.  The hardest part is setting up the racks and cables.  Once that's done, the fun begins.

Building these kits was a challenge, taking me the better part of three days to complete the pair.  There are a lot of parts to connect, and a lot of them are orientation specific, so some care is involved in getting it right the first time.

When I finished each one, I felt exhausted as if I had just performed some serious physical labor.  I don't get that feeling from a fuzz pedal or whatever.  A big PCB like this takes some time and effort.  Lucky for me I had some Aphex Twin playing on my bluetooth stereo.

There were some less than perfect parts about these specific kits.  The first thing I noticed were spelling and grammar errors in the build guide.  My favorite one was the repeated use of "Resisters."  That's 101 stuff, Jason, LOL.  But I do have to give him credit for a nice front panel design, and a good PCB layout.

I had to add my own Sharpie markings for frequencies for each band.  Somewhat bafflingly, the CEQ kits come with zero information other than "H, HM, LM, L" for frequency markings on the panel.  To me, this is unacceptable so I consulted the original Calrec panel for clues.  This put me off building these for a while.  My confidence did increase during the build.

Until the awful part of attaching the pots and front panel.  The pots don't sit flush to the front of the PCB, and there is no guide to get a proper right angle so the card sits flat in a 500 rack.  The first build was ugly, I had to super glue some washers onto the pots to get a close-enough right angle, and to keep the small blue pots from being destroyed.  On the second build, the nightmare fuel got to me enough that I used a square rule to check my angle before soldering the pots, which are also how the panel is mounted.  I would have much preferred something like the CAPI kits where there is a mounting bracket with standoffs that holds everything together, and with the proper geometry.  This was the main setback for this kit.

Another small setback was some of the solder pads were painfully small.  The 100n caps in particular, the square pads that connect them to the ground plane are so small and odd that they barely attract the solder away from the legs of the caps.  I had to use my flux pen, and some careful soldering technique, to get a proper joint on these 29 components.  It wasn't pretty, but I made it work.  Bigger solder pads could have solved this.  And for some reason, I needed a lot of flux pen action for these PCBs.  Which is something I've hardly used before in other projects.  I don't know how to explain that.  It seems like these might be bypass caps for the op amps, which is a nice touch.

Lucky for me, both EQs worked right off the bat, thanks to meticulous assembly.  And the happiest thing I can report is that they do sound excellent, and I've really enjoyed using them so far.  It feels like a game changer to be getting into more complete hardware mixing.  I've been effortlessly getting some classic kind of tones by twisting these little knobs.  Which is also really fun.  By the end of the week my 500 series rack will be full, and that's a happy place to be.  I'm already planning the next one.





Wednesday, April 19, 2017

The Varmint - Vintage 4-Way ProCo Rat Mod from Dan Wiley Audio

The Varmint Deluxe

PCB from the always wonderful Mad Bean Pedals, lavendar case and rotarty swith, small parts, etc, from Tayda Electronics.  This build was commissioned by a good friend of mine and she's very happy with it.

This is a vintage rat circuit, to a T, but with clipping diode pair options on a rotarty switch.

Mode 1 is the standard 1N914 silicon diodes.  The surprising part is how different this sounds from my ProCo Turbo Rat, Vintage Rat, and You  Dirty Rat.  The old RAT circuit really does have that sort of warmer, midrange rich, type of vintage tone to it, more like an old fuzz pedal or something.  The modern rats have a slight bit more edge or distortion, or scoop sound to them.  I'll have to build one of these for myself.

Mode 2 is 3mm red LEDs.  This is probably my favorite sound of all rats, the "Turbo" mode, bright and cutting, powerful, loud.

Mode 3 is some 1N34A or possibly 1N60P diodes, not sure, but they are germanium.  They seem to clip so much that they are very quiet, so these are my least favorite in this circuit, just due to the volume drop.

Mode 4 is a couple of 2N7000 MOSFET with Source on one side, and Drain and Gate soldered together on the other side.  This sound is something I really enjoy, pretty fat sounding, warm high end.  Something I'll need to explore more.  Maybe just buy the FAT RAT and add it to the collection.



Microphone Repair. Noisy Groove Tubes GT66, MXL R80 Blown Ribbon Replacement.


FIRST THE MXL R80

Here you can see the blown out ribbon, and what the PCB and transformer look like when removed from the R80.  I could tell something was wrong because the sound quality was weak and very distorted.  I couldn't really see the damage through the head grill, I had to take the grill off to inspect the ribbon.

The little rubber shock mount rubber grommet assembly has been removed as well to free up the ribbon motor for work.  You've got to have easy access to the ribbon motor by itself, without obstacles, to do this kind of ribbon work, in my experience.

I'm pretty sure I blew this one from careless handling.  Either a P pop without a proper vocal screen, or too close to a kick drum without a pop screen or 45 degree angle down placement.  Not sure which, but hopefully I've learned my lesson, and it won't happen again.  All it takes is one puff.  LOL.  This is the first ribbon mic I have destroyed in such a way.  Lucky for me this is also an upgrade opportunity, since I have some 1.8 micron foil on hand from Geistnote.

You can see that the center of the ribbon has been flattened of crimps, and the wire mesh pattern from the wire screens that used to be taped on with the yellow tape has been pressed into the ribbon!  Ouch.



Here is the new ribbon installed after being crimped in the Tube Wringer also from Geistnote.  I have seen other types of toothpaste roller tools out there, they are very easy to use once you learn the method.

Whatever foil was stock in the MXL seems a bit heavier than this 1.8u foil.  I also am not going to put the mesh screens back on, leaving the head grill wide open at this point, just need to handle it carefully.

When I was cutting my ribbon, I measured the gap, and cut the ribbon 1 mm smaller than the width of the gap.  This leaves a half mm gap to either side of the ribbon once installed.  It's a pretty tight fit, but I was happy that I was able to make it work without too much trouble.

This is my third re-ribbon after the Apex 205 I posted earlier.  It does get much easier with a little experience.  I got it perfect on the first try, this time.  The only thing I still hate is holding my breath, I might look into a surgical mask or something like that to block the breath.



In my opinion, this mic sounds expensive.  I don't see any need to upgrade the transformer in this particular MXL, just the mechanical and ribbon mods take it to a very happy place.

Right now this is my outside kick drum microphone, but I would love to get a few more for other instruments.  It's a little on the dark and midrange side of things, but takes EQ very easily, and has almost no artifacts of any kind in the sound, a very pure tone.  I think the body is fairly free of resonance or reflection points.

For maxium safety on kick drum (or bass amp, floor tom, vocal, etc) I am using a foam windscreen fitted over the top of the mic.  I also have angled the mic down 45 degrees toward the floor for double security.  Got that tip from a Royer video.  Keeps any wind blasts from hitting bang on flat to the face of the ribbon.  A secondary advantage is that the null of the fig-8 pattern is now minimizing cymbal bleed into this channel.  The bass drum sounds huge and there is little need for the subkick at this point.  Adding the subkick in gives a gut-wrenching subterranean punch to the drum.  Would be nice for some styles.



GROOVE TUBES GT66 NOISE REPAIR

My buddy Amos at Marshall Sound Studios handed me a couple cranky mics to attempt to soothe, see what I can do.  It's always nervous working for other people but it was a good challenge and test.

The mic was exhibiting a "seashore" type of windy, fluttery noise after being powered on for an hour or so.  It wasn't apparent on immediate power on, but once it came on it didn't leave.

Jim Jacobsen from JJ Audio has posted about these mics, apparently he's had a few on his bench.  He suggests the first thing to replace is the two small mica caps next to the pad and roll off switches.  He says to try that first, and if there is still noise, second call would be to replace the tube.

So I ordered the parts, a 33 pf silver mica cap, and a 3 pf silver mica cap, from Mouser Electronics.  The code on the 3 pF cap reads "3D" you should be a able to spot these, they are vaguely shaped like a smashed peanut or something of the sort.

I powered the mic on and ran it for 7 or 8 hours, and knock on wood, it seems to be fixed!

So now I know that small value caps are a good place to look for noise in condenser mics.  I had a similar problem with an AKG C451 e from the late 60s/early 70s.  There was a tiny polystyrene cap I replaced that fixed that mic.  The whooshy noise was pretty similar in that mic.

In other mics I've had moist capsules needing to be gently dried, bad tubes, dirty XLR connections, and things like that being other common sources of noise.



All in all, a very satisfying afternoon's work!  Pedals and guitars are fun, but mics give a special kind of joy I don't get anywhere else.

Saturday, March 4, 2017

DIY Auratone Mix Cube type speakers / monitors

I ordered a pair of paper cone woofers from MCM Electronics

5'' Full Range Monitor DriverBy MCM Audio Select (55-1595)MCM Part #55-1595


They were $9 each.  I saw that the Vas paramater was roughly similar to the size of my boxes, not perfect, but close enough to place a bet on it.  In the end, it worked out fine.

My oak-faced plywood came from Lowes.  I think it's 3/4" thick.

My dimensions are 7" x 7" x 7" except one of them came out about 1/4" less deep due to funky woodworking.  They sound close enough to be used as a pair, even though I would have rather them match exactly.

The speaker terminals on the back were from eBay.  They accept banana plugs or bare speaker wire.

Inside each speaker is some foam quilt batting from WalMart, commonly referred to as "polyfil" which is not the brand I found.  I stuffed quite a lot in there to try to get a little more artificial size out of them, I think that's how that works.

My first box used 6 wood screws per side.  But the second box I used only 4 screws per side and I like that design a lot better, it looks much cleaner.  Also my "countersink" holes were a lot smaller on the second box, which looks sharper.

I intended to fill the holes with dowels but in the end I just used some Wood Putty for the first time.  It's not pretty on the big holes, but looks OK on the smaller ones.  I also used it to fill in gaps in my funky woodworking.  Probably some wood filler would have been better, since it would have dried hard.  Wood Putty never dries, it's just like play dough or something.  If I had to do it again, I'd probably use wood filler stained to match the finish.

A few mistakes along the way were using files after the cabinet had been screwed together which lead to scratches.  Also the chisel idea was a disaster, do NOT use chisels on plywood, it just shreds big holes out of it.  My best method was to unscrew the side needing work and use a shinto to carve it down nearly flush.  All the flush sanding was done with an orbital sander using 60 grit sandpaper.  That gave some pretty clean edges.

Once the cabinets were screwed and carved and sanded flush, I took them apart with an impact driver and applied wood glue, then screwed them back together.

Then I sanded 120, 220, 320, and 400.  Then I cleaned with a blow can and some 99% rubbing alcohol.  Then I hand rubbed a stain.  I used some wood dye mixed with 99% alcohol, mixing amber and dark brown stains.

Let the stain dry and set for 24 hours.  Next day rubbed in some Tung Oil finish, 3 coats or so.

Let Tung Oil dry overnight, rough up with 0000 steel wool, clean, then apply another layer of tung oil.  Once again 3 layers or so.  Just keep rubbing on new layers until it looks glossy and wet after sitting for a few minutes.  The first couple of rubs will soak right in.  Once again, let dry overnight.

Then 0000 steel wool for the final matte/semi-gloss finish.  Then final assembly.  I used a very heavy gauge wire inside the speakers to connect the speaker terminals to the speaker.  I couldn't find my spade connectors so I just soldered everything.

I used a hole cutter for the back hole, it was slightly too large, in retrospect, but worked out OK.

The front hole was cut by hand and was a very good size for the speaker.  I just traced a circle, drilled a bunch of holes, and cut out the rest with a jab saw.  Then cleaned up the cut with files and rasps and such.

I had to use clamps to position the sides when drilling the initial screw holes.

The second speaker came out a lot better, and a lot faster than the first.  You will learn very quickly with a project like this what works and what doesn't.

In the end, they sound great!  And they look the business.  I will be adding this to my stack of studio monitors to complete the array.  They sound similar to the Avantone I used to own, although slightly different of course, due to the different driver.  They will serve the exact same function.  I even enjoyed listening to music on them.  It sort of reminds me of listening inside a car.  Glad to have captured something like that for my mix position.  All you get is midrange, but since there is no crossover, and no bass port, the "information" is very clear and reliable.  MCM claims a frequency response of 80 Hz to 15 KHz, but you can clearly hear that there is a big hump in the mids, which is exactly the point of a cube speaker like this.  I think it will be really good for focusing on snare drum, hi hat, and ride cymbal tones, as well as vocal/piano/drum/guitar balances, etc.

The main asset of these speakers is not having to pay $350 for a brand name.  Also I prefer the roughshod wooden appearance, and I will never have to get rid of these.  They can be something I am proud to own.

I'm sure someone with more woodworking experience, and big machines, can get a better result at a much quicker speed.  This was my first cabinet building experience, and I used only hand tools, so it did go on for quite some time.  By the time I got to the second one, though, the speed picked up and the work got a lot cleaner, so I am glad to have had the experience.  And I'm glad to have the bits and bobs out of my work area in the garage!  2017 is going to be about finishing projects and tying everything together for me.  I've got so much heat on the back burner right now.
